Mezzanine Platform System

Fully utilize your vertical space with a platform or mezzanine. Nutech Mezzanine Platform is sturdy, safe, expandable, and easy to dismantled and reinstalled. Ideal for extra storage, packaging area or other purposes.

Ideal If...

  • You have to store a wide range of different product category, in different shapes, and sizes.
  • You want optimized utilization of vertical and horizontal storage space
  • You need immediate accessibility to each product category .

Do some of these points match your needs?

Contact Number

Tel: +(6)03-5121 8266 | Fax: +(6)03-5121 0266

Email

sales@nutech.co.id

Upright Supported Platform

What is Upright Supported Platform (aka. Double-Cup Platform)

As a type of NUTECH Multitier System, Upright Supported Platforms takes maximum advantage of the height of premises, doubling or tripling the surface area and enabling it to be fitted out as a storage area, changing room, or offices, etc. The installation of Upright Supported Platform is an ideal solution to maximize the space available by taking advantage of the height of the building.

All NUTECH Multitier System is totally dismountable and re-usable, and their structure, dimensions, and location are easily modified.

Advantages

  1. Multiplies surface space in industrial premises.
  2. Adaptable to the specific needs of the client, thanks to the great variety of sizes available, types of floors, construction systems, etc.
  3. Quick to assemble and easy.
  4. They can be complemented with a variety of shelving system.



HOW IT WORKS

High flexibility for multiple applications.

If you would like to enlarge the working and racking area in your warehouse and want to use that space effectively, a self-supporting platform is an ideal solution.

Upright Supported Platform Systems provide plenty of flexibility in outfitting your warehouse. The layout and construction of the racking systems and workstations on the platforms can be adjusted to meet your requirements. The platform can be accessed by a staircase. Additional storage system such as boltless racks can be installed on the platform for increased storage.

When manufacturing and installing Upright Supported Platform Systems, NUTECH sets new standards in processing, material quality, and durability. Our systems are designed to be modular with bolted connections to allow fast on-site assembly without any welding. For our customers, this means a quick implementation.

NUTECH is now a market leader in intralogistics after many years of experience at all stages, from planning to production through to assembly. Our comprehensive range of accessories, from different floor coverings to staircase, allows you to implement a warehouse design that meets every possible preference and requirement. Based on your requirement, we also offer upright supported platform.

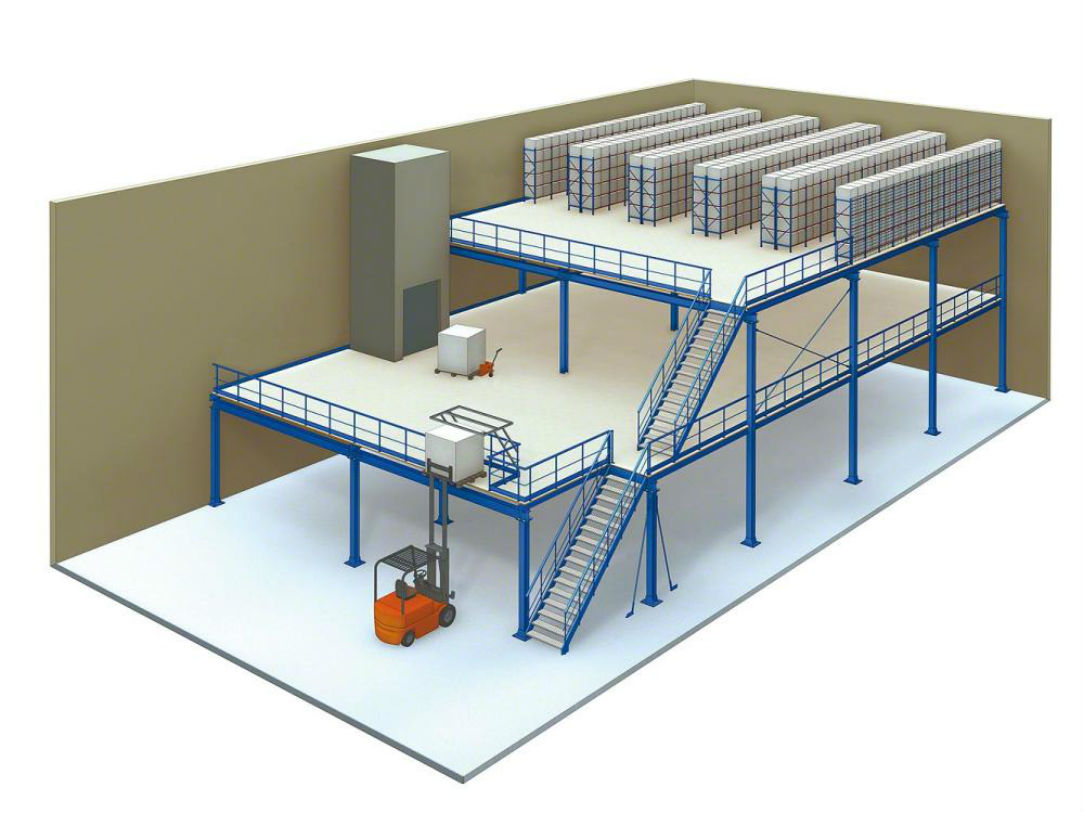

Illustration of Upright Supported Platform in a warehouse space

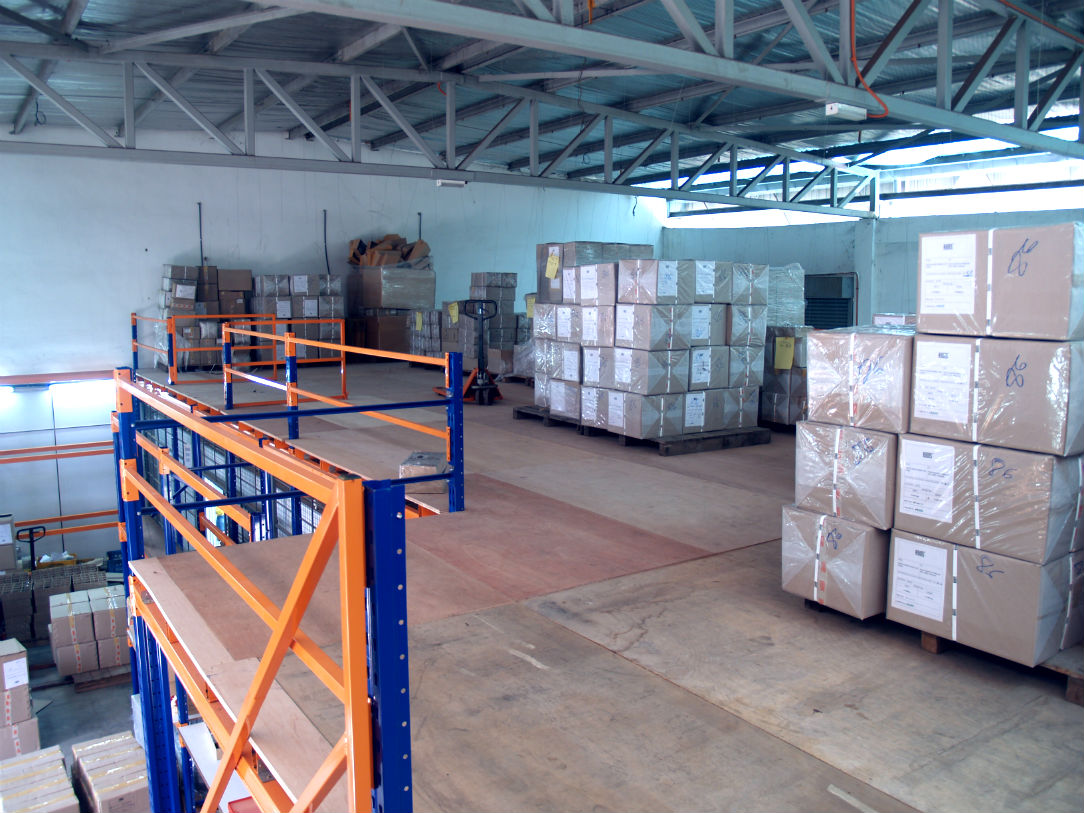

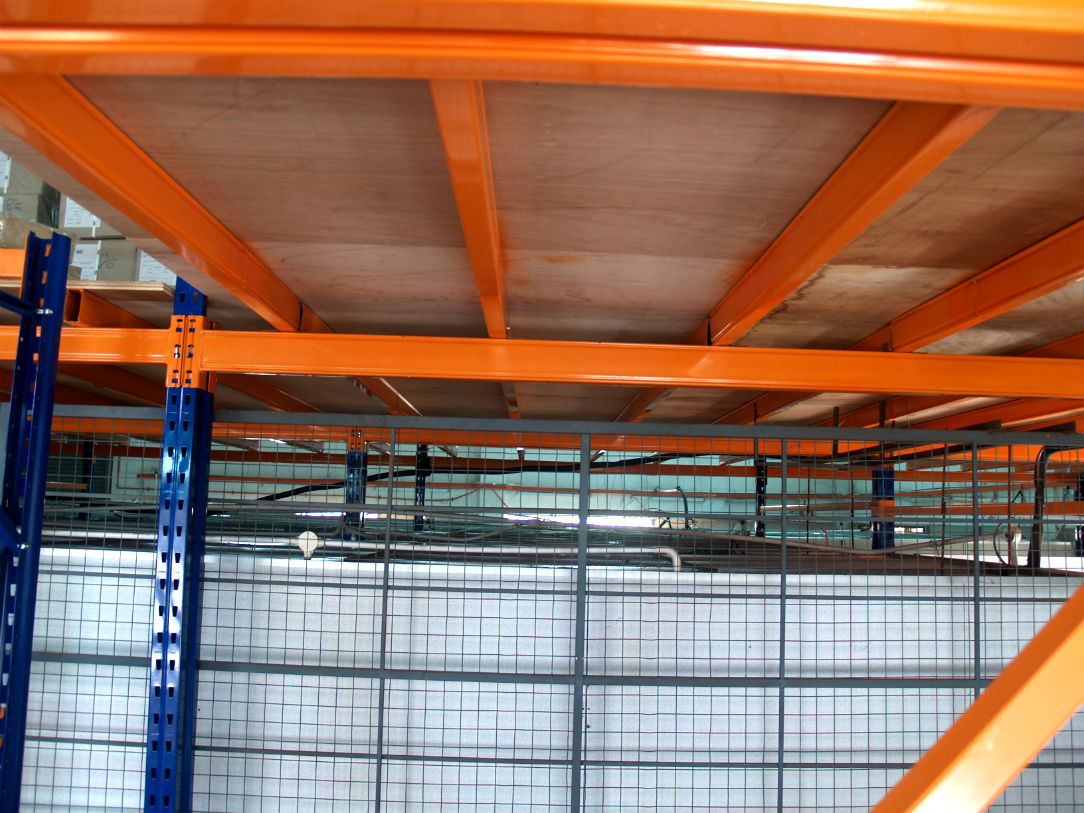

Wiremesh Back Panel to secure goods from theft. Floor Joist with optimum pitch distance to support Plywood flooring for safe and sturdy platform.

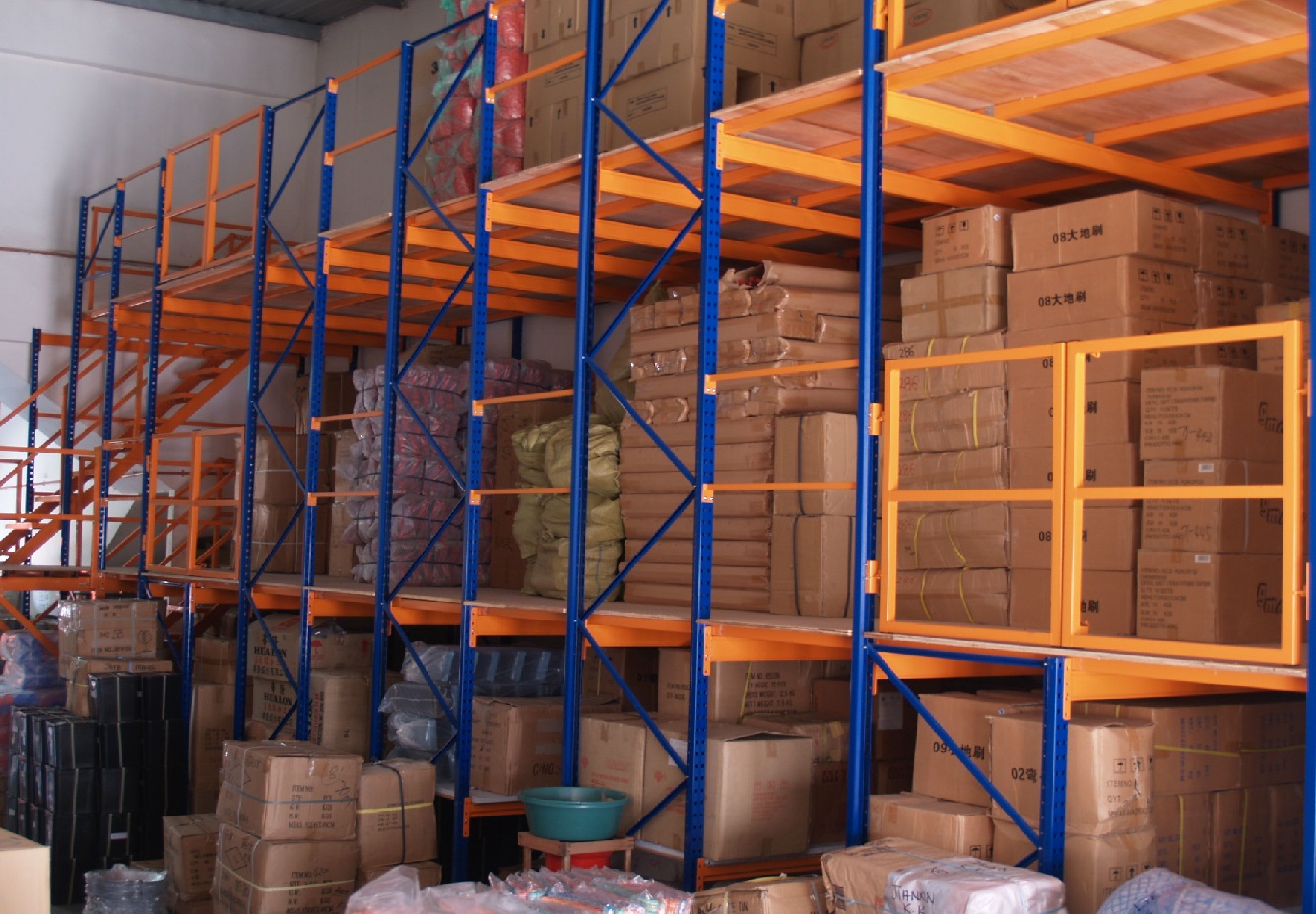

NUTECH designs each Multitier System to suit our customer's specific requirements, ensuring the space is optimized with storage capacity and funtionality.

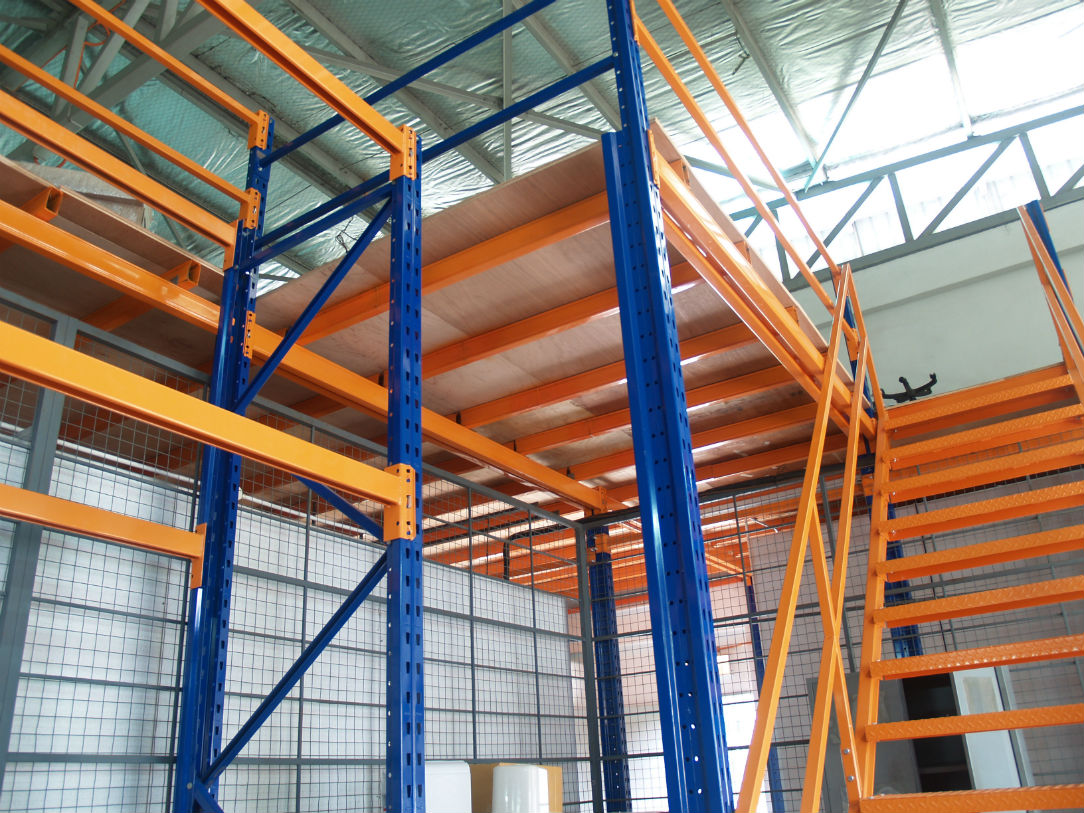

NUTECH Staircase allows for easy access to upper level. Handrails are installed for safety purpose on upper levels.



General Benefits

Cost-efficiency

The drive-in system enables particularly compact pallet storage, saving on costly floor space.

Perfect use of space

Drive-in tacking ensures that warehouse volume is used exceptionally efficient.

Safe, secure storage

Pressure-sensitive goods can be securely stored in this racking system, which holds even unevenly=loaded pallets compactly and securely.

System-specific advantages of drive-through racking

Compared with drive-in racking, drive-through racking enables increased picking performance.




Components and Options

Frame

  • 1.6mm, 1.8mm, 2.0mm thick
  • N60, N90, N115
  • Epoxy coated or Galvanized frame

The Details

Nutech selective pallet racking is made with the same frames as our well established pallet racking system. It is fully screwed in place and particularly well suited to heavy loads. At the top end, the frames are connected to each other with struts in side-to-side and in front-to-back direction. Additionally, the uprights of each frame are linked to each other by horizontal and diagonal struts to ensure that all parts of the frame are solidly connected to provide excellent rigidity.

Hook-in Beam

  • Rapid assembly
  • Adjustable height
  • For heavy-duty applications

The Details

Rapid assembly thanks to a straightforward boltless system: The 3 or 4 hooks of the bracket perfectly slot into the upright perforations. Unintentional lifting is prevented by a safety pin which is secured against dropping out by a 90' turn. The hooked bracket is also designed to hold heavy loads and its height can be adjusted in 75mm intervals.

Pallet Support Bar

  • Heavy duty, welded cuff design
  • Easy installation, drops in place
  • Epoxy powder coated

The Details

The pallet support bars provide additional safety and security under your pallet when installed in pallet racking system. Reduce load times because they give forklift driver confidence in loading pal

Frame Protector

  • Protects the frame from damage
  • Epoxy coated

The Details

The frame protector is placed at the further end of a row to protect the frame from damage or collision with material handling equipment.
