WHAT IS MODULAR MULTITIER SYSTEM
Modular Multitier System takes maximum advantage of the height of premises, doubling or tripling the surface area and enabling it to be fitted out as a storage area. The installation of a Modular Multitier System is an ideal solution for storing small parts, spare parts, goods in bins and carton boxes.
All of NUTECH Multi-tier System, including Modular Multi-tier System is totally dismountable and re-usable, and their structure, dimensions and location are easily modified.
Advantages
- Multiplies surface space in industrial premises.
- Adaptable to the specific needs of the client, thanks to the great variety of sizes available, types of floors, construction systems, etc.
- Quick to assemble and easy.
- They can be complemented with a variety of shelving system.
HOW IT WORKS
Compact and space saving for more storage capacity
A Multi-tier Modular System means each level is a mirror image of the ground floor layout. Walkways are fitted between the racks using the frame to provide the strength and rigidity of the installation. This makes for very cost-effective designs.
It is the best solution for you if you require flexible storage of various size of items, the multi-level racking design can be used to store medium and small item. Being modular, it can be extended horizontally and vertically as needed.
Depending on your requirements, Nutech designs and implements our range of upright and beam profiles, rails, floor decking, stairs and handrails. Quality work and maximum safety on all levels are our utmost priorities. Rest assured that your loading needs on each levels are covered by our design expertise.

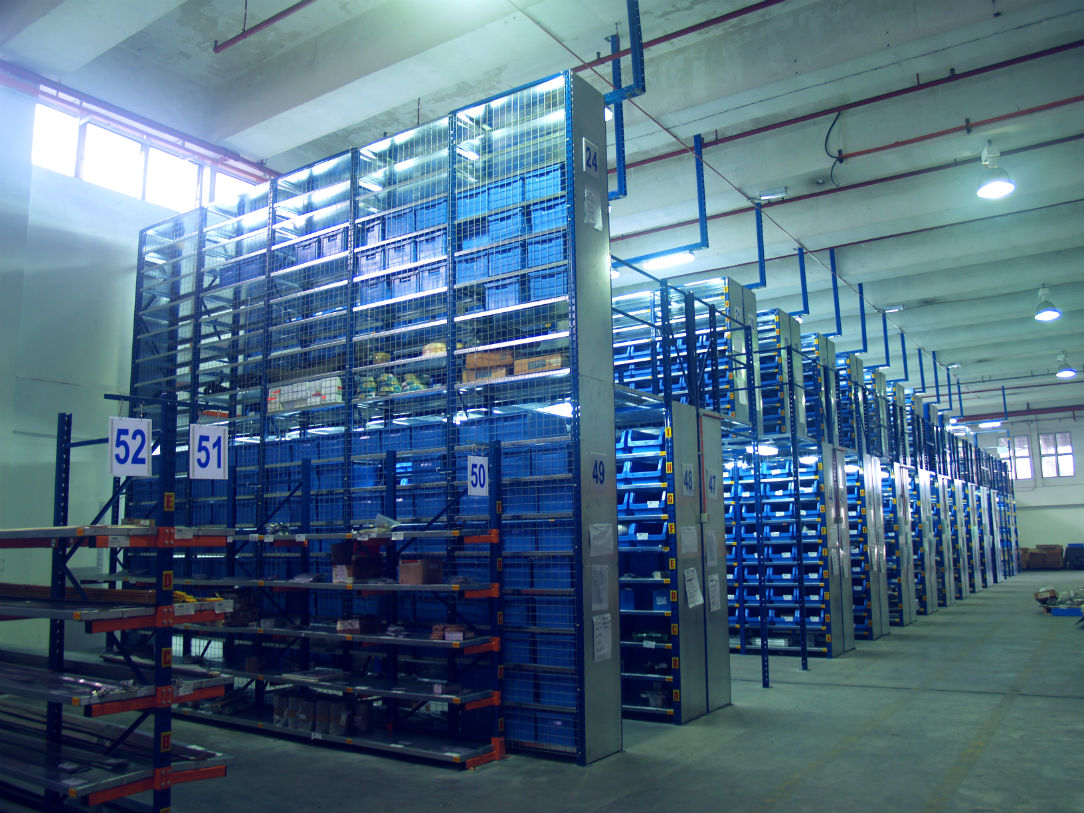

Modular Multitier System: Wiremesh Back Panel to prevent product from falling off shelves.

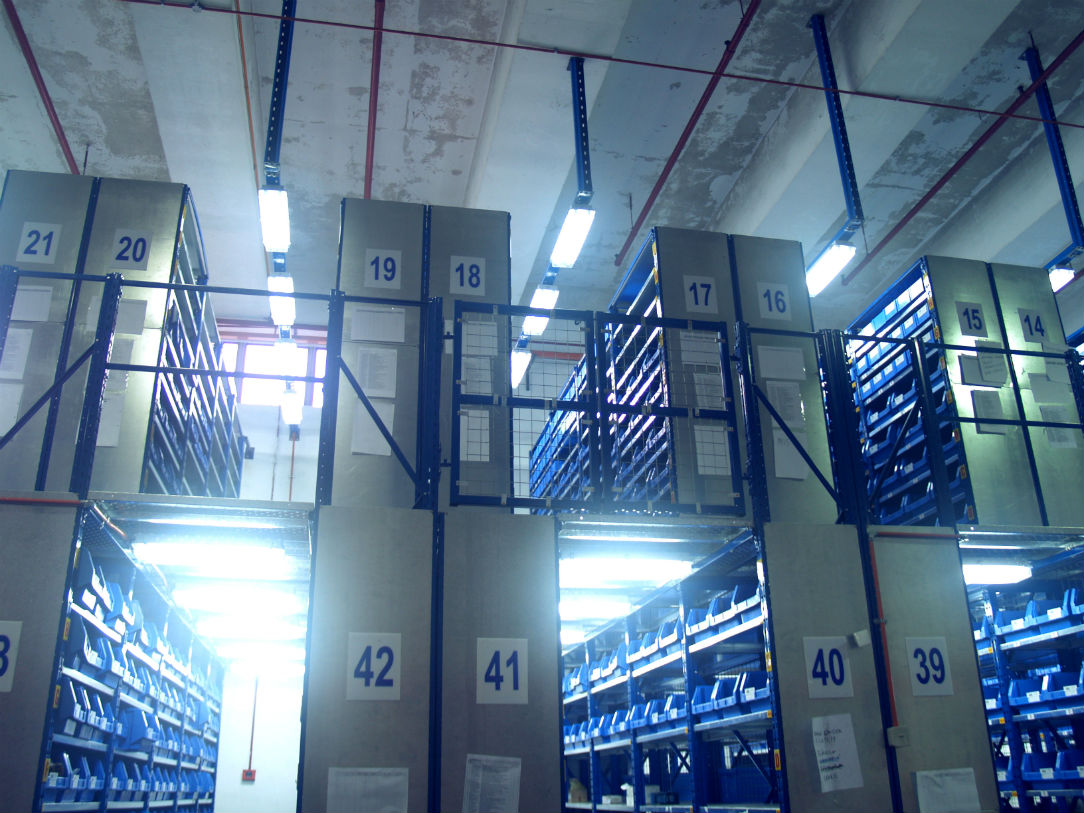

NUTECH Staircase to first floor on the Modular Multitier System. Space efficient and Safe.
.jpg)

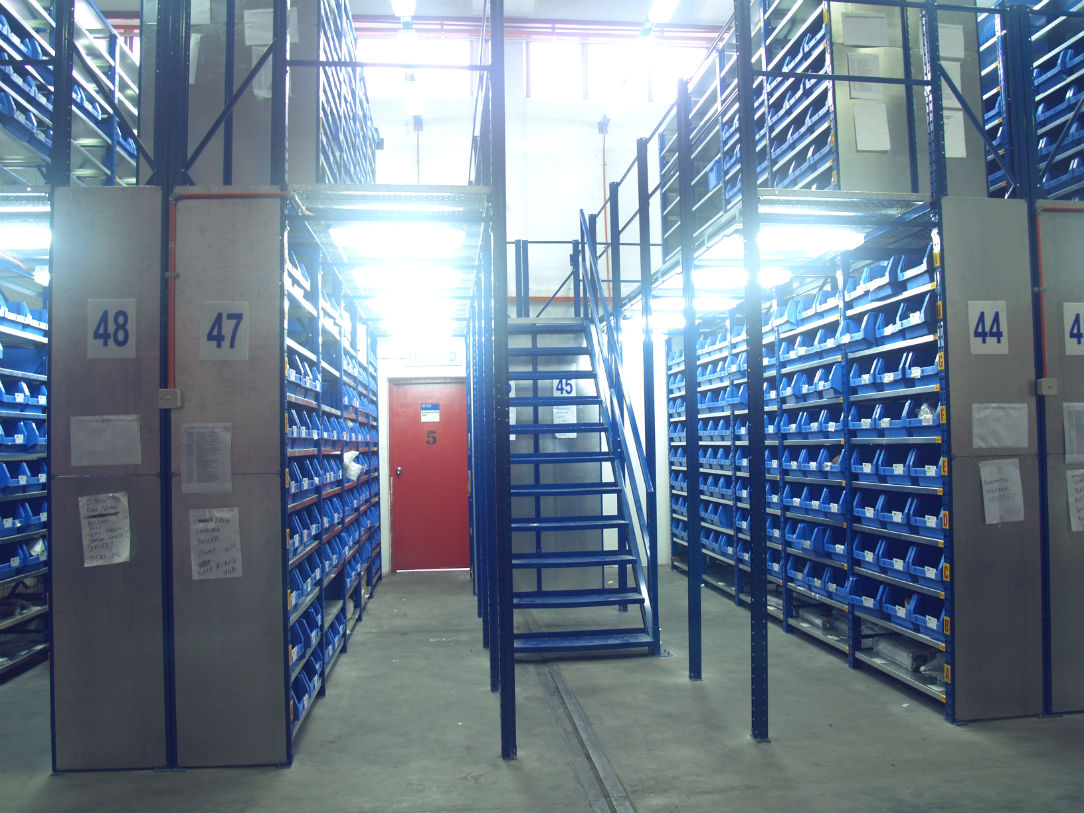

Side View: Pallet Gate implemented on the first floor for faster loading and unloading. Handrails installed for safety purpose.

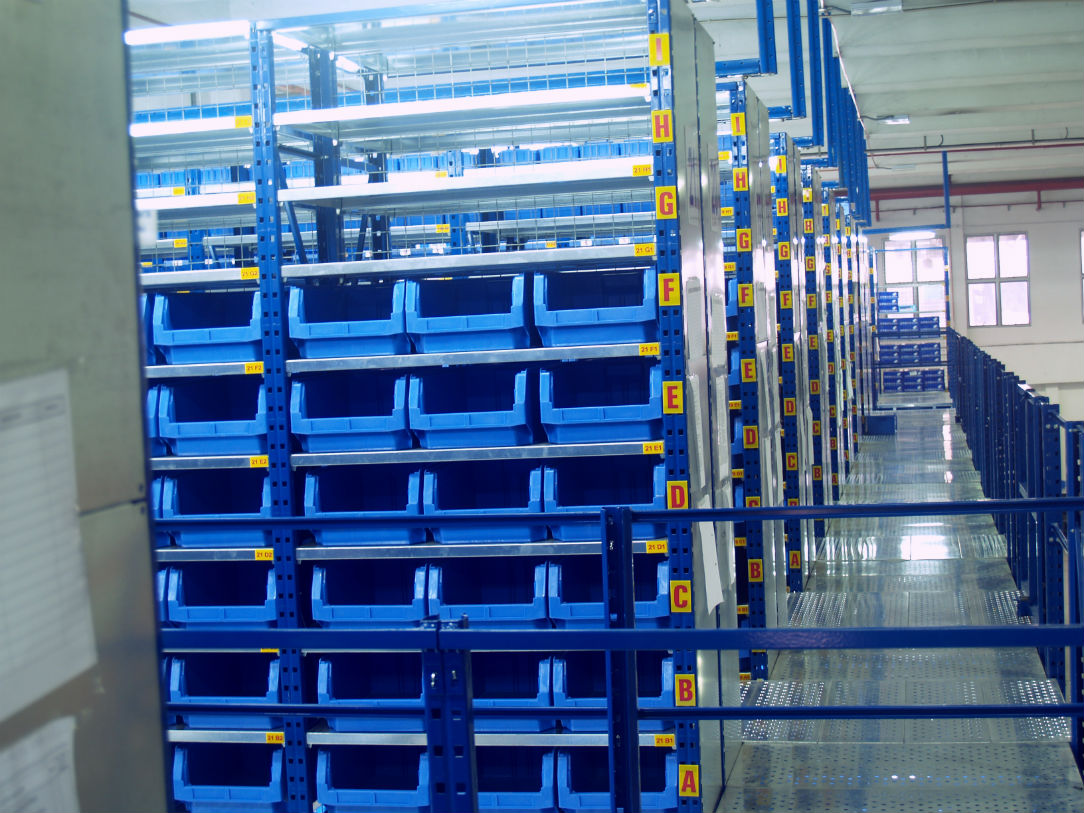

NUTECH optimizes storage capacity of Plastic Bins on each shelf. Image shows minimum clearance between plastic bins to ensure maximum valuable storage capacity for Kimberly Clark.

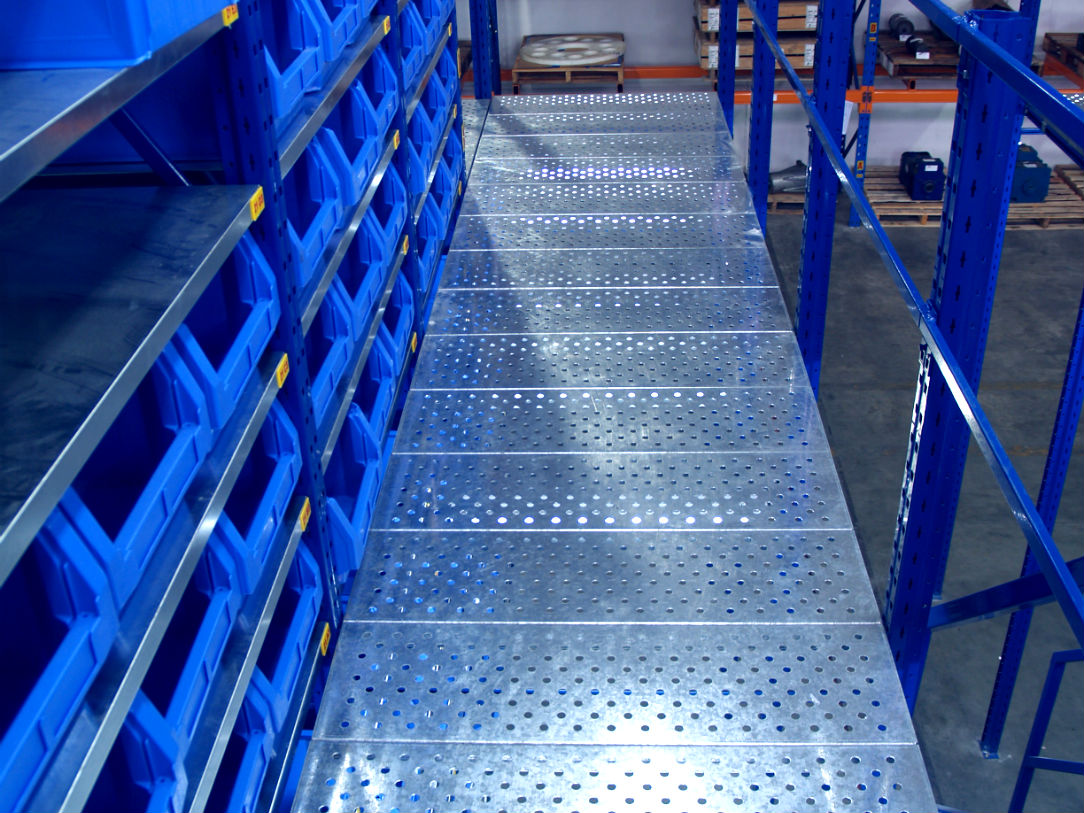

Galvanized Perforated Steel Plank Flooring has 20% openning allow for a more conduvice environment, safe, and hygienic.

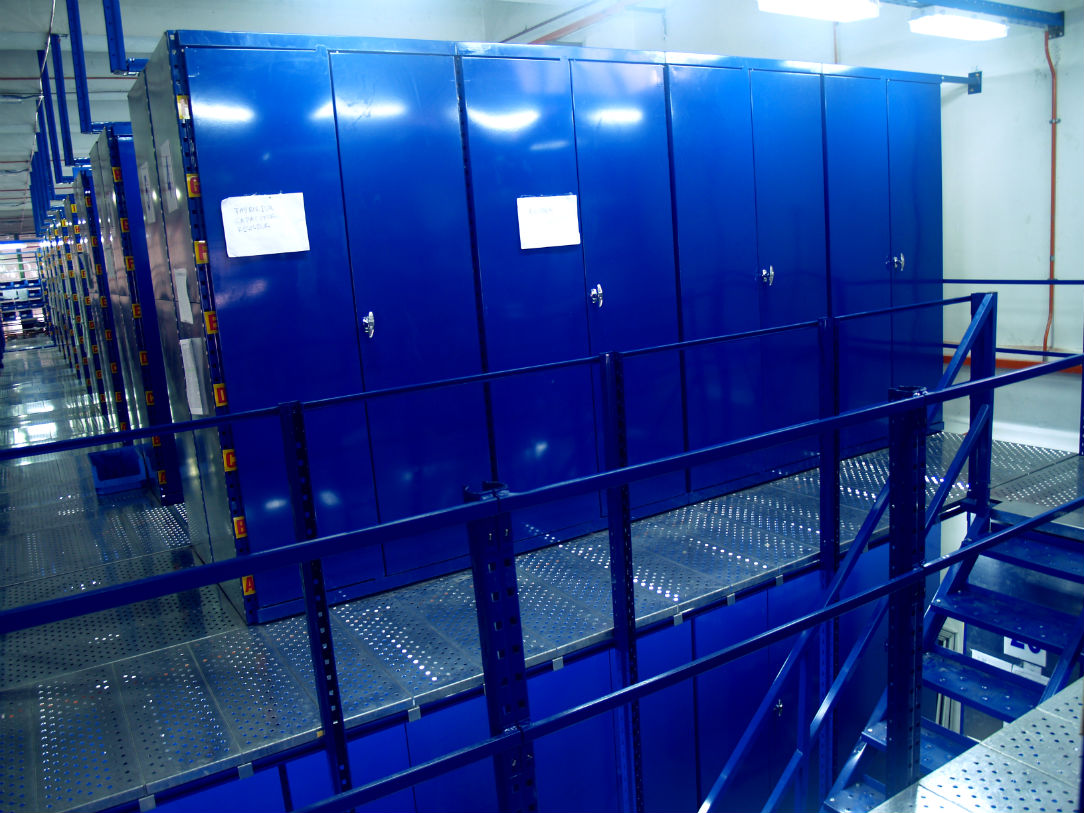

Cabinets with Lock Mechanism to prevent theft of important and expensive product or documents.
General Benefits
High Storage Density
Designed specifically to suit your manual handling and requirement on site by optimizing vertical space
Direct and Safe Access
NUTECH’s perforated steel plank Walk-Way is tested and proven to provide safe and immediate access to all stored goods on each level.
Flexible Configuration
Multitier Modular System is adaptable to expansion and adjustment vertically and horizontally.
More Storage Space
Make use of your vertical space for more storage capacity.
Components and Options
Frame
- 1.6mm, 1.8mm, 2.0mm thick
- N60, N90, N115
- Epoxy coated or Galvanized frame
The Details
Nutech selective pallet racking is made with the same frames as our well established pallet racking system. It is fully screwed in place and particularly well suited to heavy loads. At the top end, the frames are connected to each other with struts in side-to-side and in front-to-back direction. Additionally, the uprights of each frame are linked to each other by horizontal and diagonal struts to ensure that all parts of the frame are solidly connected to provide excellent rigidity.
.jpg)
Hook-in Beam
- Rapid assembly
- Adjustable height
- For heavy-duty applications
The Details
Rapid assembly thanks to a straightforward boltless system: The 3 or 4 hooks of the bracket perfectly slot into the upright perforations. Unintentional lifting is prevented by a safety pin which is secured against dropping out by a 90' turn. The hooked bracket is also designed to hold heavy loads and its height can be adjusted in 75mm intervals.
Pallet Support Bar
- Heavy duty, welded cuff design
- Easy installation, drops in place
- Epoxy powder coated
The Details
The pallet support bars provide additional safety and security under your pallet when installed in pallet racking system. Reduce load times because they give forklift driver confidence in loading pal
Frame Protector
- Protects the frame from damage
- Epoxy coated
The Details
The frame protector is placed at the further end of a row to protect the frame from damage or collision with material handling equipment.
