HOW IT WORKS
The most universal system for direct and single access to each pallet, despite the increasing use of modern technology in the storage and picking fields. It is an optimum solution for those warehouses with palletized goods and a wide variety of SKUs.
The working aisle measurement between each rack and the rack height depends upon the characteristics of the forklift or material handling equipment, pallet size and the height of the warehouse itself. In addition to that, the racking configuration can be easily extended and modified for future expansion or relocation. A high flexibility and relatively low investment costs have made this racking system a good solution for storage and picking.
The NUTECH selective pallet racking can be designed to meet any pallet size or weight and can be used in conjunction with all types of lift trucks. A wide range of accessories is available to accommodate your storage needs.
The aisle space between each row is designed for the forklift to pass through, usually between 3300mm~4000mm.

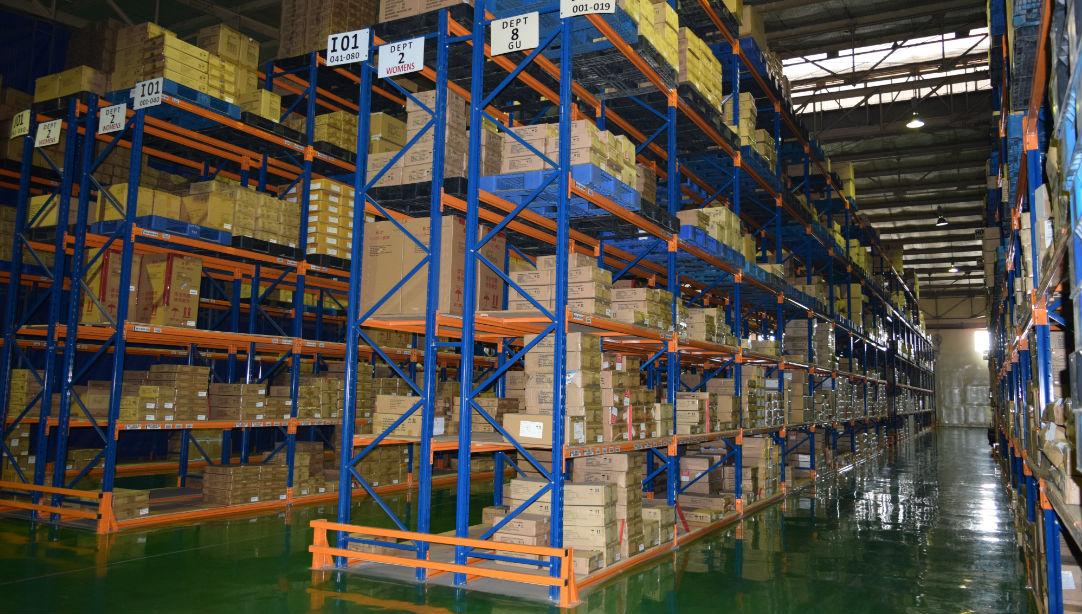

NUTECH Selective Pallet Racking improves storage capacity in a warehouse.
%20(resized2).jpg)
.jpg)
Storing goods on racking prevents damage that comes from stacking palletized goods on each other.
Selective Pallet Racking is suitable on all types of flooring.
General Benefits
Total Stock Control
100% access to each pallet. Each storage space is taken up by a single pallet.
High Compatibility
Maximum adaptability to any load type, material handling equipment, and floor surface.
Flexible Application
Easily extended and modified. Can be combined with long-span beams for manual hand selection of goods.
Low Investment
Basic investment for Selective Pallet Rack is relatively low.
.jpg)
-
Frame
-
Beam
-
Base Plate
-
Levelling Plate
-
Row Spacer
-
Pallet Support Bar
-
Drum Support
-
Pallet Foot Support
-
Pick Up & Deposit Station
-
Safety Mesh
-
Upright Protector
-
Frame Protector
-
Wooden or Metal Shelving
-
Shelf Support
-
Fork Spacer
-
Sectional Shelf
-
Splice Plate
Components and Options
Frame
- 1.6mm, 1.8mm, 2.0mm thick
- N60, N90, N115
- Epoxy coated or Galvanized frame
The Details
Nutech selective pallet racking is made with the same frames as our well established pallet racking system. It is fully screwed in place and particularly well suited to heavy loads. At the top end, the frames are connected to each other with struts in side-to-side and in front-to-back direction. Additionally, the uprights of each frame are linked to each other by horizontal and diagonal struts to ensure that all parts of the frame are solidly connected to provide excellent rigidity.
.jpg)
Hook-in Beam
- Rapid assembly
- Adjustable height
- For heavy-duty applications
The Details
Rapid assembly thanks to a straightforward boltless system: The 3 or 4 hooks of the bracket perfectly slot into the upright perforations. Unintentional lifting is prevented by a safety pin which is secured against dropping out by a 90' turn. The hooked bracket is also designed to hold heavy loads and its height can be adjusted in 75mm intervals.
Pallet Support Bar
- Heavy duty, welded cuff design
- Easy installation, drops in place
- Epoxy powder coated
The Details
The pallet support bars provide additional safety and security under your pallet when installed in pallet racking system. Reduce load times because they give forklift driver confidence in loading pal
Frame Protector
- Protects the frame from damage
- Epoxy coated
The Details
The frame protector is placed at the further end of a row to protect the frame from damage or collision with material handling equipment.
